Main Components
The Thorn Security Minerva Marine Fire Controller is built around a modular electronic architecture designed for continuous fire detection and alarm management onboard ships. Major components include:
- Main CPU Processing Board
- LCD Display Module
- Operator Keypad Assembly
- Fire Zone Monitoring Circuit
- Detector Loop Interface Board
- Addressable Device Communication Module
- Alarm Relay Output Board
- Fault Monitoring Circuit
- Internal Power Supply Module
- Fuse Protection Circuit
- Event Memory (EEPROM/Flash)
- RS-232 / RS-485 Communication Interface (depending on system configuration)
- Ribbon Cable Assemblies
- Terminal Connection Blocks

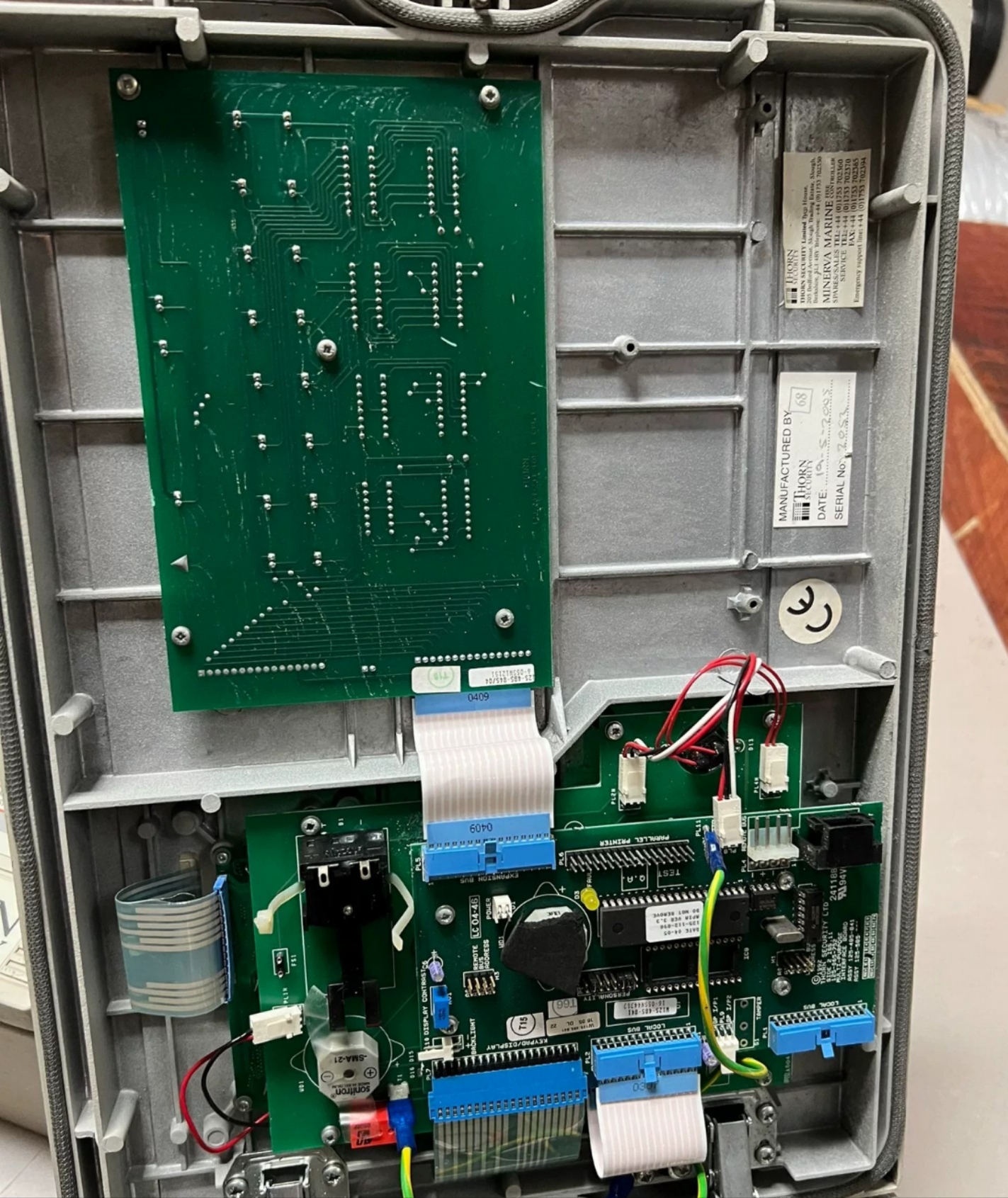

- Internal Main PCB & Display PCB
These components work together to monitor detectors, process alarms, record events, and communicate with other fire safety equipment installed onboard.
Marine Applications
The Minerva Marine Fire Controller is installed on a wide range of commercial and offshore vessels, including:
- Container Ships
- Bulk Carriers
- Crude Oil Tankers
- Chemical Tankers
- LNG & LPG Carriers
- Offshore Support Vessels
- FPSO Units
- Passenger Ships
- Cruise Ships
- Naval Vessels
Typical protected areas include:
- Main Engine Room
- Auxiliary Engine Room
- Generator Rooms
- Boiler Rooms
- Purifier Rooms
- Incinerator Rooms
- Cargo Pump Rooms
- Accommodation Areas
- Electrical Switchboard Rooms
- Control Rooms
- Galley
- Cargo Holds
The controller continuously supervises all connected fire detection devices to provide rapid alarm notification and improve onboard safety.
Common Problems & Troubleshooting
| Problem |
Possible Cause |
Recommended Solution |
| LCD Display Blank |
AC/DC power failure |
Check power supply, fuse, and internal power module |
| FIRE LED Permanently ON |
Active detector or manual call point |
Identify the affected zone and inspect field devices |
| FAULT Indicator ON |
Open circuit, short circuit, or detector fault |
Check loop wiring, detector addresses, and communication |
| DISABLED Indicator ON |
Zone intentionally isolated |
Review system configuration and re-enable if required |
| Detector Not Responding |
Detector failure or wiring issue |
Inspect detector, address settings, and cable continuity |
| False Fire Alarm |
Dirty smoke detector or environmental contamination |
Clean or replace detector and inspect installation conditions |
| Keypad Not Working |
Keypad membrane or display PCB fault |
Test keypad connections and replace faulty parts if necessary |
| Communication Failure |
RS-485/network interruption |
Verify communication cables, termination, and controller settings |
Performing systematic diagnostics before replacing the controller can significantly reduce maintenance costs.
Maintenance Tips
To maintain optimum performance:
- Test all fire detection zones according to the vessel's maintenance schedule.
- Clean smoke detectors and optical chambers regularly.
- Inspect detector loop wiring for loose or corroded terminals.
- Verify battery and power supply condition.
- Perform lamp and buzzer tests periodically.
- Review the event log for recurring faults.
- Check communication between remote panels and the main controller.
- Tighten terminal connections during scheduled servicing.
- Replace damaged ribbon cables or connectors immediately.
Preventive maintenance ensures reliable fire detection and compliance with SOLAS safety requirements.
Why Ships Still Use the Minerva Marine Fire Controller
The Thorn Security Minerva Marine Fire Controller continues to be widely used because of its reliability, intelligent fire detection capabilities, and long operational life.
Key advantages include:
- Fast fire detection
- Intelligent addressable monitoring
- Stable marine operation
- Accurate zone identification
- Easy maintenance
- Modular electronics
- Reliable alarm processing
- Proven performance in harsh marine environments
Many ship operators continue maintaining Minerva Marine systems because replacing individual boards or controller modules is significantly more economical than replacing an entire fire detection system.
At SM MARINE SERVICE™, we help customers extend the life of these systems by supplying tested replacement units, spare parts, repair services, and technical support.
Frequently Asked Questions (FAQ)
What is the Thorn Security Minerva Marine Fire Controller?
It is an intelligent marine fire alarm control panel used to monitor smoke detectors, heat detectors, manual call points, and fire alarm devices throughout a vessel.
Is the Minerva Marine system addressable?
Yes. Most Minerva Marine systems are intelligent addressable fire detection systems, allowing individual detectors and devices to be identified during alarm or fault conditions.
Can the controller be repaired?
Yes. Depending on the fault, the CPU board, display board, communication module, power supply, keypad, or internal PCB assemblies can often be repaired or replaced.
Does the system store alarm history?
Yes. The controller records alarm and fault events, helping engineers diagnose system conditions and maintenance requirements.
Does SM MARINE SERVICE™ supply Minerva Marine controllers?
Yes. We supply new, reconditioned, and fully tested Thorn Security Minerva Marine Fire Controllers, spare parts, repair services, calibration, and worldwide technical support.
Spare Parts Available
SM MARINE SERVICE™ can assist in sourcing or supplying:
- Minerva Marine Fire Controller
- Main CPU Board
- Display PCB
- LCD Display Module
- Keypad Assembly
- Detector Loop Interface Board
- Communication Board
- Power Supply Module
- Relay Output Board
- Fuse Board
- Internal Ribbon Cables
- Terminal Blocks
- Complete Fire Alarm Control Panel
Short Product Description
The Thorn Security Minerva Marine Fire Controller is an intelligent addressable fire alarm control system designed for commercial ships and offshore installations. It continuously supervises fire detection devices, identifies alarm locations, manages emergency responses, and provides dependable protection for critical onboard spaces.
User Manual & Technical Resources
For installation, detector addressing, wiring diagrams, commissioning, maintenance procedures, event log interpretation, troubleshooting, and programming, engineers should consult the official Thorn Security Minerva Marine Fire Controller Manual, the vessel's fire detection documentation, and applicable SOLAS and classification society requirements.
