Voyage Data Recorder (SVDR)
Rutter Technologies Inc.
Refurbished
Manufacturer: Rutter Technologies Inc.
Country of Origin: Canada
Model: VDR-100G2 / VDR-100G2S
Product Type: Voyage Data Recorder / Simplified Voyage Data Recorder
System Architecture: Modular Ethernet-based recording system
Marine Application: Recording and preservation of navigation data, radar/video information, bridge and VHF audio, alarms and other ship operational information.
The original Rutter operation manual identifies Rutter Technologies Inc., St. John’s, Newfoundland, Canada as the manufacturer. The VDR-100G2 and G2S use a modular architecture in which acquisition modules communicate over Ethernet to the main recording/storage system.

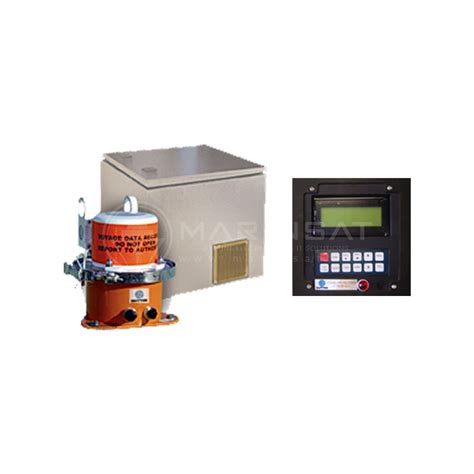

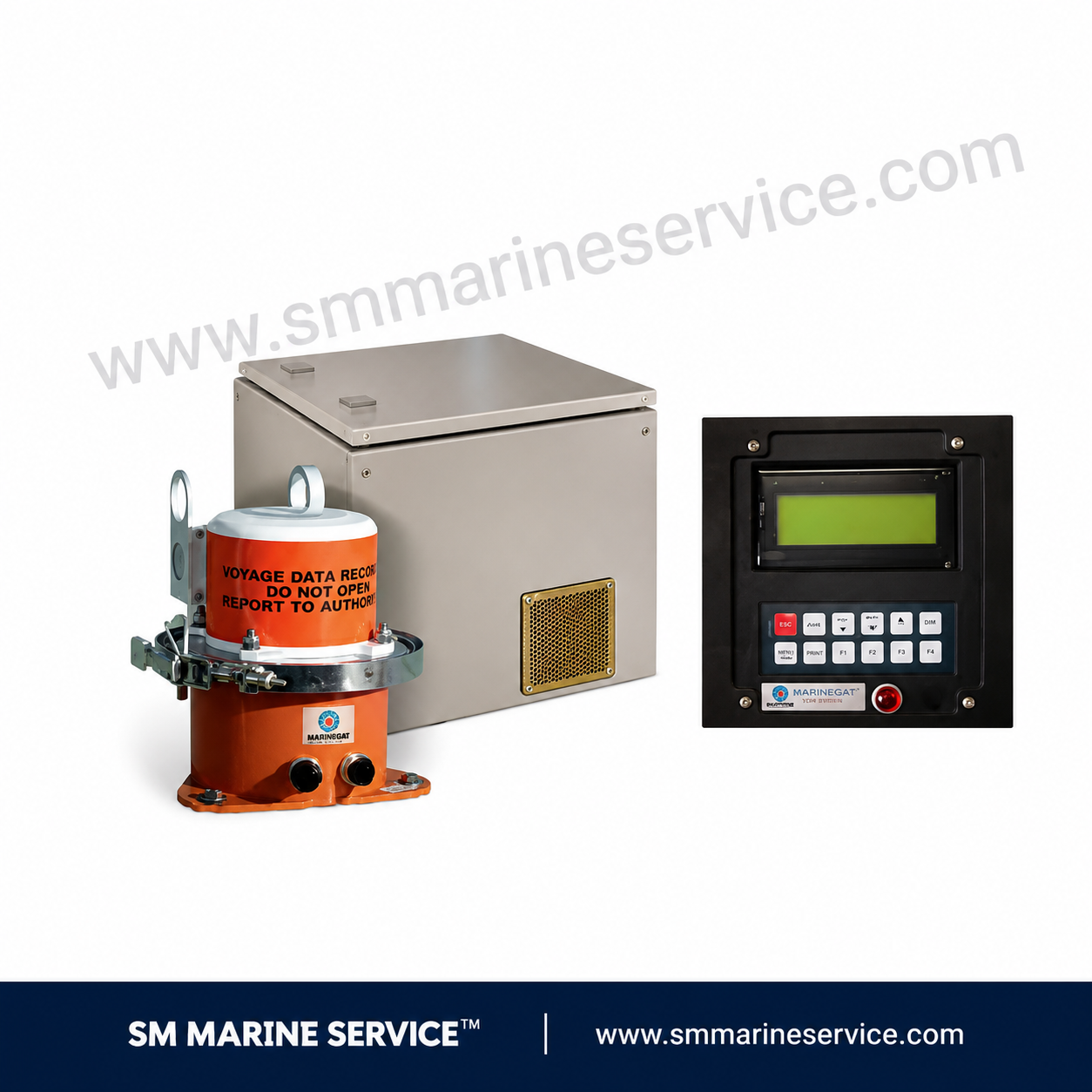

The RUTTER VDR-100G2 is a professional marine Voyage Data Recorder designed to continuously capture information needed to reconstruct the events surrounding a marine casualty.
Its related VDR-100G2S version is a Simplified Voyage Data Recorder developed for applicable cargo-vessel S-VDR requirements. The G2S brochure states that it was designed to comply with IMO MSC.163(78) and uses a modular “fit anywhere” design intended to reduce cabling and installation time.
The platform records navigation sensor data, bridge/VHF audio and video information and stores required data in a protected Final Recording Medium.
The VDR-100G2 operates as a distributed data-acquisition and recording system.
The main path is typically:
Ship Sensors / Radar / Audio → NMEA, Video & Audio Modules → Data Management / Processing Unit → Final Recording Medium → Playback / Data Recovery
The official operation manual states that the Final Recording Medium is solid-state storage designed to hold at least 12 hours of VDR information. Depending on system version, fixed and float-free recording capsules were available.
The VDR-100G2 platform offers modular Ethernet-based data acquisition, USB data access, multimedia playback, alarm monitoring and protected data recording.
Important functions include:
The G2S brochure additionally describes optional recording of up to four video sources and Remote Storage Modules providing 30-, 45- or 60-day onboard archiving.
| Specification | RUTTER VDR-100G2 |
|---|---|
| Main Input Power | 85–264 VAC, 50/60 Hz |
| Optional Supply | 24 VDC |
| Typical Operating Consumption | Approx. 250 W |
| DPU Dimensions | 350 × 400 × 400 mm |
| DPU Weight | Approx. 43.2 kg |
| DAU Dimensions | 400 × 600 × 150 mm |
| DAU Weight | Approx. 16.8 kg |
| Audio Inputs | 8, 12 or 16 depending configuration |
| Video Inputs | Up to 4 |
| Data Inputs | 8 or 16 NMEA 0183 / IEC 61162 |
| DPU Recording | 24 h on later units; earlier specified units 12 h |
| Extended NMEA Storage | Up to 30 days in documented configuration |
| Backup Power | 2 hours for critical recording functions |
| FRM Minimum Recording | 12 hours |
These values come from the VDR-100G2/G2S operation manual; configuration and serial-number differences should be checked before spare-parts replacement.
The DPU/DMM is the central computing and storage section. It receives Ethernet data from Audio, Video and NMEA modules and sends the required information to the protected recording medium.
A known replacement VDR-100G2 Data Management Module is identified as RUT-00412-DA in current legacy spare-parts listings.
The optional DAU houses Audio, Video and NMEA acquisition modules. The manual specifies up to 16 audio inputs, four video inputs and 16 NMEA/IEC 61162 inputs, depending on configuration.
The OAU is the operator interface. It provides audible and visible system alarms and controls for functions such as Mute, Test, View Data, RSM and Emergency Backup.
The protected capsule stores critical voyage information. One documented Rutter fixed capsule is RUT-02447. The system also supported L3 and float-free SFRM options.
Indoor and outdoor microphone assemblies are available, both incorporating microphone-test buzzers. Audio is digitized to 12-bit resolution and distributed via Ethernet for recording.
The VDR-100G2/G2S can record information from equipment including GPS/GNSS, gyrocompass, speed log, echo sounder, radar, bridge microphones, VHF radio and other IEC 61162/NMEA navigation sources.
It is suitable for merchant vessels, tankers, container ships, bulk carriers, passenger vessels and other commercial ships with applicable VDR/S-VDR requirements.
The manual defines System Error as loss of communication with the Record Application. Check the DMM/DPU, software condition, Ethernet connections and power.
Video Error means communication with the Video Module has been lost. Check the video module, Ethernet connection and power supply.
This indicates lost communication with the Audio Module. Check module power, Ethernet wiring and module condition.
FRM Error indicates lost communication with the Final Recording Medium. Inspect the FRM/capsule, Ethernet connection and associated power.
The alarm indicates loss of utility power. Check AC supply, power-control circuitry and backup batteries.
This means communication with the Power Control Module has been lost. Check PCM power, cables and communication interface.
The official manual also defines:
Remote Error – Remote Storage Module communication lost
Serial Error – NMEA module communication lost
Mic Error – Communication lost with a microphone
Disk Error – Failure to secure a data set
GPS Error – Failure to record GPS information.
Regularly inspect the DPU/DMM, acquisition modules, OAU, microphones, FRM capsule, Ethernet cables, backup batteries and power-control hardware.
Check alarm history instead of repeatedly silencing recurring alarms. The OAU's Mute key acknowledges the audible alarm but does not correct the underlying fault.
Periodic data-recovery tests are also important. The system supports retrieval through USB, Remote Storage Module or a LAN-connected client PC.
Annual Performance Testing and statutory VDR work should be performed by appropriately qualified personnel.
Common RUTTER VDR-100G2 requirements may include:
Complete VDR-100G2 / G2S System • DPU • Data Management Module • RUT-00412-DA DMM • DAU • OAU • Power Control Module • Power Supply • NMEA Module • Audio Module • Video Module • Bridge Microphones • Remote Storage Module • Fixed FRM Capsule • Float-Free SFRM • RUT-02447 Capsule • HDD/Storage Components • Ethernet Interfaces • DataAnalog • DataDiscrete • DataGyro • DataSynchro • DataSplitter • DataProtocol Interface • Cables • Connectors • Internal PCBs
SM MARINE SERVICE™ can support sourcing of New, Used, Refurbished, Reconditioned and Tested Working RUTTER VDR-100G2 / G2S equipment and spare parts, depending on availability.
The VDR-100G2/G2S is now a legacy platform, but it remains in service on many vessels. Current marine service networks still list VDR100G2 and VDR100G2S among supported VDR models, while specialist providers note that the system has been superseded by later generations such as NetWave systems.
Because the system is modular, replacing an individual DMM, acquisition module, OAU, microphone or recording-medium component can sometimes be more practical than immediately changing the entire VDR installation.
What is RUTTER VDR-100G2?
It is a modular Voyage Data Recorder developed by Rutter Technologies Inc. to record navigation, radar/video, audio and other vessel information.
What is VDR-100G2S?
It is the Simplified Voyage Data Recorder variant developed for applicable S-VDR requirements, including MSC.163(78).
Where can I buy RUTTER VDR-100G2 spare parts?
SM MARINE SERVICE™ can support sourcing of complete legacy systems, DMM/DPU units, interface modules, OAU, microphones, capsules and other compatible parts.
Can I buy used or refurbished VDR100G2 parts?
Yes. Used, tested, refurbished and reconditioned units may be suitable for existing installations after compatibility and condition verification.
How long does the protected capsule record?
The documented FRM/SFRM provides at least 12 hours of protected recording.
What does FRM Error mean?
Communication with the Final Recording Medium has been lost.
Where can I download the VDR100G2 manuals?
Operation, installation, data-recovery and playback manuals are available through the resources below.
The RUTTER VDR-100G2 / VDR-100G2S is a modular marine Voyage Data Recorder platform using Ethernet-connected Audio, Video and NMEA modules, a central processing/storage unit, Operation & Alarm Unit and protected Final Recording Medium. It supports navigation-data, bridge/VHF audio and video recording, data retrieval and playback for casualty investigation and operational review.
