SAAB R4 AIS Class A Transponder
Saab Marine Electronics
Refurbished
Manufacturer: Saab TransponderTech AB / Saab
Country of Origin: Sweden
Model: R4 AIS
Product Type: Shipborne Class A Automatic Identification System (AIS)
System: R4 Navigation System / R4 AIS Class A Transponder System
Marine Application: Automatic vessel identification, tracking, collision-awareness support, AIS messaging and integration with shipboard navigation systems

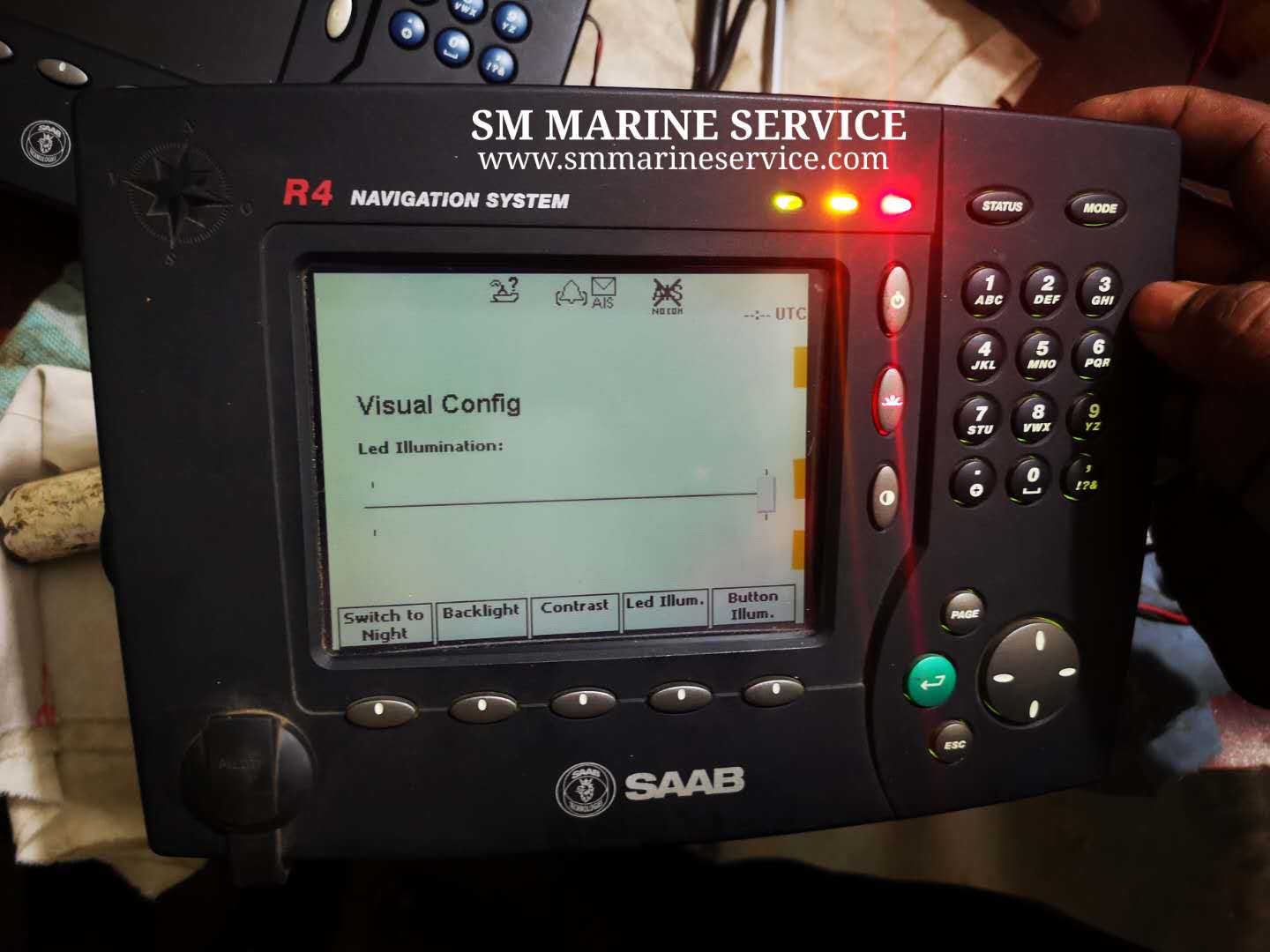

The equipment shown in the supplied photograph is the SAAB R4 Navigation System display, used as part of the R4 AIS Class A shipborne transponder system.
Saab's technical documentation describes the R4 as a shipborne Class A AIS Transponder System. The installation manual covers the R4 Display, R4 Transponder, GPS and VHF antennas, pilot interface, ECDIS interface and associated shipboard connections.
The SAAB R4 AIS is a professional Class A Automatic Identification System developed for commercial and professional marine navigation.
AIS automatically exchanges identification and navigational information between appropriately equipped ships and shore stations using marine VHF radio.
The R4 system combines a dedicated R4 AIS Transponder with the bridge-mounted R4 Display, providing officers with access to AIS targets, alarms, messages, own-ship information and configuration functions.
The system was designed for integration with other bridge equipment. Saab documentation includes interfaces for ECDIS, ARPA, VDR, pilot equipment, external navigation sensors and long-range communication equipment.
The R4 is a Class A shipborne AIS transponder system.
It automatically broadcasts vessel information while simultaneously receiving transmissions from other AIS-equipped ships and shore infrastructure.
Depending on configuration and connected sensors, AIS information can include:
The bridge display allows officers to inspect AIS targets and monitor system status without relying exclusively on a connected ECDIS or radar.
The R4 is designed as a professional Class A shipborne AIS system for SOLAS-type commercial shipping applications.
The bridge display incorporates an LCD, numeric keypad, directional controller, function keys, STATUS and MODE controls and visual status indicators.
The transponder includes its own GNSS functionality for AIS purposes, with connection for a dedicated GPS antenna.
The installation supports an external pilot plug for connecting compatible pilot equipment. Saab's installation manual provides dedicated wiring information for this interface.
The R4's ECDIS port can be connected to compatible ECDIS, ARPA and/or VDR equipment and supports IEC 61162-1/2 interfacing.
A dedicated Long Range interface is included in the system architecture.
The R4 Display provides an alarm list where active AIS and system alarms can be viewed and acknowledged.
Mandatory AIS information including MMSI, IMO number, call sign, ship name, height over keel, ship type and GPS antenna positions is configured through the R4 Display.
A typical R4 AIS Class A installation contains several major components.
The R4 Display is the primary bridge operator interface.
It allows officers and technicians to access:
AIS targets – Messages – Alarms – Status – Voyage information – Configuration – Display settings
The photograph supplied for this article shows the display operating in the Visual Config menu with adjustments for backlight, contrast, LED illumination and button illumination.
The transponder is the core radio and processing unit.
It handles AIS VHF transmission and reception, GNSS-related processing, external sensor interfaces and communication with the R4 Display.
The installation manual specifies separate status indications: green for power, yellow for received data and red for radio transmission activity.
A dedicated GNSS antenna supplies satellite signals to the R4 AIS transponder.
Antenna position must be configured correctly because AIS broadcasts include vessel-reference and position-related information.
AIS communicates over dedicated marine VHF frequencies. A correctly installed VHF antenna, low-loss coaxial cable and sound connectors are therefore critical.
The pilot interface allows compatible pilot equipment to access required AIS information.
The system can receive information from other navigation equipment, depending on vessel configuration, such as heading and other navigation sensors.
The SAAB R4 AIS was designed for professional shipboard use and can be found on commercial and governmental vessels.
Typical installations include:
Cargo Ships: Automatic identification and traffic awareness during coastal and ocean navigation.
Tankers: AIS target monitoring and vessel information exchange in congested waterways and terminals.
Container Ships: Integration with radar, ECDIS and other bridge systems.
Bulk Carriers: Class A AIS functionality for international voyages.
Passenger Vessels: Vessel identification and traffic-awareness support.
Government / Coast Guard Vessels: AIS-based identification and maritime situational awareness.
AIS information can also be received by VTS and other appropriately equipped shore stations.
This is an important R4-specific fault.
The R4 Display continuously monitors its serial communication with the transponder. Saab's manual identifies alarms including:
“R4 Display Lost Connection to R4 Transponder”
and
“R4 Transponder Lost Connection to R4 Display.”
Check:
Saab specifies that the Display's TX lines connect to the Transponder's RX lines and vice versa.
Possible causes include:
Check active alarms before replacing the display.
Inspect the dedicated GPS antenna, antenna cable and GNSS status.
Also verify antenna-position configuration and any applicable external sensor information.
If AIS position is available but heading or another sensor value is missing, inspect the corresponding external navigation-sensor interface.
The AIS itself cannot create valid gyro heading information when no valid heading source is connected.
If the R4 Display operates normally but the connected ECDIS or radar does not receive AIS targets, check:
The installation documentation confirms that the R4 ECDIS port is intended for ECDIS, ARPA and VDR connections.
Older R4 displays can develop LCD/backlight problems, keypad faults, illumination failures or internal PCB/power problems.
If the transponder remains operational, replacing or repairing only the display may be more economical than replacing the complete AIS installation.
Receiving AIS targets does not automatically confirm that the vessel is transmitting correctly.
Check the system status, VHF antenna, MMSI/static configuration, active alarms and transmitter operation. RF testing should be performed by qualified marine-radio personnel.
Regular inspection is particularly important for older AIS equipment.
Periodically inspect:
Operational checks should include verification of:
MMSI – IMO number – Ship name – Call sign – Ship type – Position – Heading – COG/SOG – Navigational status – AIS target reception – transmission status.
AIS identity parameters must be correct. MMSI and other protected installation parameters should only be altered by appropriately authorized personnel.
Many R4 systems remain relevant because an AIS installation is deeply integrated with a vessel's bridge electronics.
A functioning R4 may already be connected to:
ECDIS → Radar/ARPA → VDR → GPS → Gyrocompass → Pilot Plug → External alarms
Replacing the complete system can therefore require more than simply installing a new transponder. Wiring, antennas, mounting, configuration, interfacing and commissioning may also need modification.
For an existing vessel, sourcing a compatible R4 Display, R4 AIS Transponder, GPS antenna, interface components or other tested spare parts can therefore be a practical repair option, provided the completed installation remains compliant with applicable flag, class and regulatory requirements.
The R4 is a shipborne Class A Automatic Identification System designed for professional marine navigation.
The system was developed by Saab TransponderTech AB, Sweden, within the Saab marine electronics product family.
Yes. Its official documentation identifies it as the R4 AIS Shipborne Class A Transponder System.
Yes. Its ECDIS interface can connect to compatible ECDIS equipment and is also documented for ARPA and VDR applications.
Yes. The official installation documentation includes a dedicated pilot interface and external pilot-plug wiring.
Saab specifies parameters including MMSI, IMO number, call sign, ship name, height over keel, ship type and GPS antenna position(s).
The alarm indicates a communication failure between the bridge display and AIS transponder. Power, serial wiring, TX/RX connections and connectors should be checked first.
Potentially, provided the part number, hardware/software compatibility and system configuration are verified before installation.
SAAB R4 AIS Class A Transponder System is a professional shipborne Automatic Identification System developed by Saab TransponderTech AB, Sweden. The system combines an R4 AIS Transponder, R4 Navigation Display, GPS antenna, VHF antenna and external navigation interfaces to provide automatic vessel identification, AIS target information, messaging and integration with ECDIS, ARPA, VDR and pilot equipment.
