MSK B016 911701 10
MAK
New product
Product identification: Electronic printed circuit board (PCB) assembly
Visible board marking: MSK B016 911701 10
Product category: Electronic control or signal-processing circuit board; exact function not yet verified
Visible integrated circuit: LM324N
Visible relay marking: SDS S2-12V
Manufacturer: Not conclusively identified from the available photograph
Country of origin of the complete assembly: Not confirmed
Marine application: Requires confirmation from the parent equipment model, nameplate or technical documentation
Replacement compatibility: Must be verified against the original assembly and equipment
Marine electronic circuit boards are important components in many types of electrical, monitoring, indication and control equipment installed onboard ships. Depending on their design, these assemblies may process electrical signals, switch connected circuits, condition input signals or support communication between different parts of a larger system.

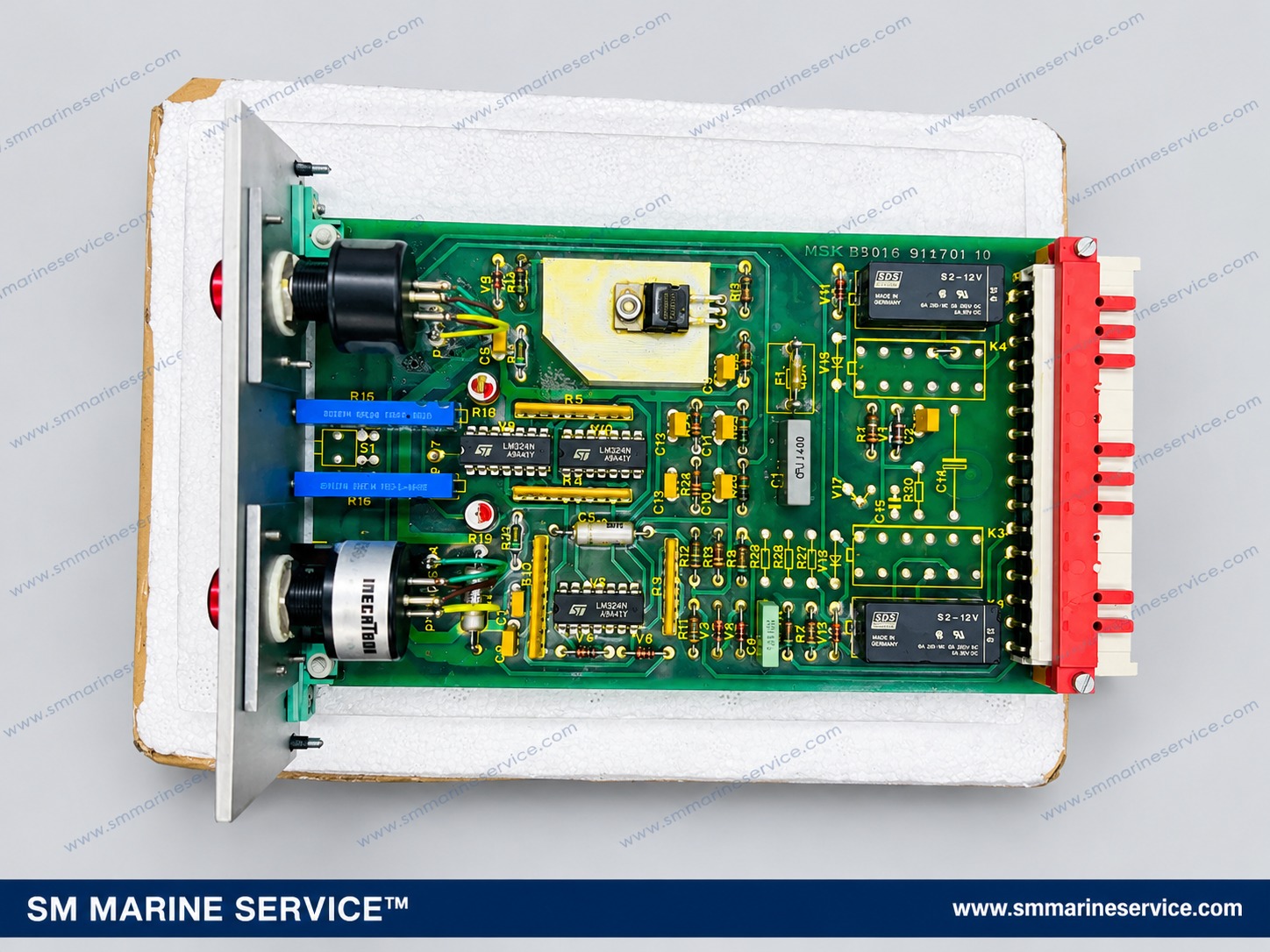

The circuit board shown in this photograph carries the visible identification marking MSK B016 911701 10. Its green printed circuit board, electronic integrated circuits, relays, resistors, capacitors, adjustment components and multi-pin connector indicate a populated electronic assembly intended to operate as part of a larger electrical or electronic arrangement.
However, the photograph alone does not establish the original equipment manufacturer, the precise function of the board or the vessel system in which it was installed. Accurate identification is therefore essential before ordering a replacement or attempting repairs.
SM MARINE SERVICE™ supports marine equipment and electronic spare-parts sourcing enquiries. Customers looking for this PCB assembly can provide the visible board number, photographs, parent equipment model and available technical documentation to help establish the correct replacement requirements.
A printed circuit board, commonly known as a PCB, provides the physical platform for mounting and electrically connecting electronic components. Copper tracks connect components according to the circuit design, while connectors provide interfaces with external wiring or other equipment.
The assembly photographed here includes several identifiable component types. The LM324N integrated circuits are operational amplifiers, while the components marked SDS S2-12V are visibly labelled as relays. The board also includes adjustable components, passive electronic parts and a multi-pin connector along its right-hand edge.
These visible details help describe the board's construction, but they do not independently establish its intended operating purpose. It should not be advertised as a confirmed navigation, engine-control, alarm, generator or propulsion PCB unless additional documentation verifies that application.
For marine engineers and purchasing teams, the most reliable identification method is to match the complete board number with the original equipment manufacturer's documentation, the host equipment nameplate and any available spare-parts list.
The green PCB provides the mounting platform and conductive pathways for the electronic assembly. Its printed identification, component positions and connector arrangement can help distinguish it from visually similar boards.
The complete marking MSK B016 911701 10 should be recorded exactly as it appears. Even small differences in a board reference can indicate a different revision, circuit design or equipment configuration.
The photograph shows integrated circuits marked LM324N. Texas Instruments documents the LM324N as a quad operational amplifier containing four amplifier circuits in one package. Operational amplifiers are commonly used in analogue signal-conditioning, amplification and related electronic circuits. Their presence does not, by itself, reveal the exact purpose of this particular PCB
Two components on the board carry the visible marking SDS S2-12V. These are relay-type components according to their appearance and markings. A relay can allow a control circuit to switch another electrical circuit through electrically operated contacts.
The exact contact arrangement, electrical rating and approved replacement must be verified against the component's complete specification and the original circuit design. A similar-looking relay should not be considered interchangeable solely because its marking contains “12V.”
The assembly contains blue adjustment components and other small adjustable or trimmer-type parts. Depending on the original design, such components may be used to set or adjust an electrical parameter.
Their precise purpose, calibration range and correct adjustment procedure cannot be established from the photograph alone. Unnecessary adjustment can alter circuit behaviour, so these components should only be changed according to verified service instructions.
A multi-pin connector is mounted along the right-hand side of the assembly. It provides a physical connection to external wiring or another part of the equipment.
Before removing or installing the board, qualified personnel should document connector orientation, terminal identification, cable routing and any applicable wiring references. Physical fit alone does not prove electrical compatibility.
The following information is limited to what can be identified visually or supported by component documentation.
| Item | Available information |
|---|---|
| Board identification | MSK B016 911701 10 |
| Board type | Populated electronic PCB assembly |
| Visible amplifier IC | LM324N |
| Visible relay marking | SDS S2-12V |
| PCB colour | Green |
| Connector arrangement | Multi-pin connector visible |
| Complete board manufacturer | Not confirmed |
| Operating voltage of the complete board | Not confirmed |
| Input/output signal details | Not confirmed |
| Parent equipment model | Not confirmed |
| Dimensions and mounting specifications | Require measurement or technical drawing |
| Approved replacement number | Not confirmed |
These limitations matter when sourcing electronic spare parts. Do not infer the complete board's operating voltage, signal functions or equipment compatibility from the ratings of one component.
Electronic PCB assemblies are used throughout marine electrical and automation systems. Depending on their verified design, circuit boards may support monitoring, indication, signal conditioning, switching, alarm processing or other equipment functions.
For this particular MSK B016 911701 10 assembly, the original application has not been confirmed. It would therefore be inaccurate to claim that it belongs to a specific navigation instrument, engine-control system, generator, pump controller or alarm panel without further evidence.
Marine engineers should establish the parent equipment's manufacturer, model, serial number and circuit-board reference before selecting a replacement. If the original manual or parts catalogue is unavailable, clear photographs of the complete equipment and its identification plate can help narrow down the search.
The following are general electronic-board diagnostic possibilities, not verified faults or alarm codes for the MSK B016 911701 10 assembly.
Equipment does not power up: Possible causes include a supply problem, damaged wiring, a connector fault or a failed component. The approved supply and circuit protection should be checked against the original documentation.
Intermittent operation: Loose connections, damaged solder joints, vibration or component deterioration can produce intermittent symptoms. Record the operating conditions and inspect the board using an appropriate safe-work procedure.
Relay does not operate: A relay may fail to switch because of a control-signal problem, coil failure, contact deterioration or an issue elsewhere in the circuit. Confirm the relay's specification before testing or replacement.
Incorrect electrical signal: An analogue circuit fault, incorrect adjustment, damaged component or external wiring problem may contribute to unexpected readings. The correct circuit diagram and test points are necessary for meaningful diagnosis.
Visible overheating or corrosion: Discolouration, damaged tracks, corrosion or burnt components may indicate an electrical or environmental problem. The underlying cause should be identified before installing a replacement board.
Connector or terminal fault: Loose, corroded or incorrectly connected terminals can interrupt signals or power. Photograph and label connections before disassembly.
Because the original equipment is not identified, no specific alarm messages, fault codes, calibration settings or test voltages can be responsibly provided for this board.
Marine electronic assemblies should be handled carefully to reduce the risk of electrostatic discharge, contamination and physical damage.
Before inspection or removal, follow the vessel's electrical isolation procedures and the equipment manufacturer's safety instructions. Verify that the circuit is in a safe condition and that disconnecting it will not compromise an operating or safety-critical system.
Inspect accessible components and connectors for corrosion, loose connections, damaged solder joints, overheating or physical impact. Avoid touching exposed electronic pins unnecessarily, and use appropriate electrostatic-discharge protection when handling the board.
Do not adjust trimmers or replace relays based only on appearance. Component-level repairs should be undertaken by qualified personnel who can verify the circuit design, component specifications and post-repair performance.
If the board supports essential shipboard equipment, any repair, substitution or functional test should be coordinated with the responsible marine engineer and conducted under the vessel's approved procedures.
SM MARINE SERVICE™ supports sourcing enquiries for marine electronic circuit boards, control modules and related spare parts, subject to identification and availability.
For the board marked MSK B016 911701 10, the enquiry should include:
A clear photograph of the entire PCB.
A close-up of the complete board identification marking.
Photographs of both sides of the board, where available.
The parent equipment manufacturer's name and model.
Any serial number, spare-parts number or revision marking.
Clear photographs of connectors and terminal arrangements.
The required quantity and preferred equipment condition.
Customers can enquire about new, used, refurbished, reconditioned or tested working electronic equipment, depending on sourcing options. The actual condition, inspection results, testing status, warranty and delivery terms should be confirmed for each quotation.
A replacement PCB must match the original equipment requirements. Differences in revision, component layout, firmware, connector pinout or electrical characteristics can prevent a seemingly similar board from operating correctly.
SM MARINE SERVICE™ can assist with identification and sourcing enquiries, but a replacement should only be selected once its compatibility has been adequately verified.
SM MARINE SERVICE™ supports marine equipment sourcing enquiries for shipowners, ship managers, technical superintendents, marine engineers, electrical officers and spare-parts purchasing teams.
When a customer needs an unidentified electronic board, accurate information is the starting point. Board markings, equipment nameplates and connector photographs can help establish which part is required and what further technical evidence is needed.
Our sourcing service covers enquiries for complete marine equipment, electronic assemblies and related spare parts. New and previously used equipment, refurbished or reconditioned items, and tested working units may be available depending on the product and sourcing conditions.
Worldwide shipping can be arranged where applicable. Availability, price, dispatch time and shipping arrangements depend on the exact item, its condition and the destination.
It is an electronic circuit board assembly carrying the visible marking MSK B016 911701 10. Its original manufacturer and precise equipment function have not been confirmed from the available photograph.
The photograph shows LM324N integrated circuits, components marked SDS S2-12V, adjustable components, passive electronic parts and a multi-pin connector.
Its appearance is consistent with an electronic assembly, but its exact application has not been established. The original equipment model or technical documentation is needed to verify its purpose.
SM MARINE SERVICE™ can assist with a sourcing enquiry. Availability and compatibility must be checked against the complete board reference and parent equipment.
Used, refurbished, reconditioned or tested working assemblies may be sourced depending on availability. The actual condition and testing evidence should be confirmed before purchase.
Component replacement requires verification of the complete part specification, circuit requirements and equipment documentation. A component with a similar name or appearance is not automatically a suitable substitute.
The applicable documentation should be obtained from the verified manufacturer or supplier of the original equipment. No specific manual or wiring diagram for MSK B016 911701 10 has been confirmed here.
Yes. SM MARINE SERVICE™ accepts international marine equipment and spare-parts sourcing enquiries, subject to availability and shipping arrangements.
MSK B016 911701 10 is the visible identification marking on an electronic PCB assembly featuring LM324N operational amplifiers, SDS S2-12V-marked relays and a multi-pin connector. The original manufacturer and host-equipment application require confirmation before replacement. Contact SM MARINE SERVICE™ for marine electronic PCB identification, spare-parts sourcing and replacement enquiries.
PCB-specific documentation: A verified manual, circuit diagram, wiring diagram or service document for the complete MSK B016 911701 10 assembly has not been identified from the available information.
For a PCB-specific manual or replacement reference, provide the original equipment manufacturer, equipment model and any additional identification labels. Component-level documentation is not a substitute for the complete assembly's service manual.
For assistance sourcing the MSK B016 911701 10 electronic PCB assembly, send the board photographs, identification markings and parent equipment details to SM MARINE SERVICE™. These details help establish the correct item and assess potential replacement options.
