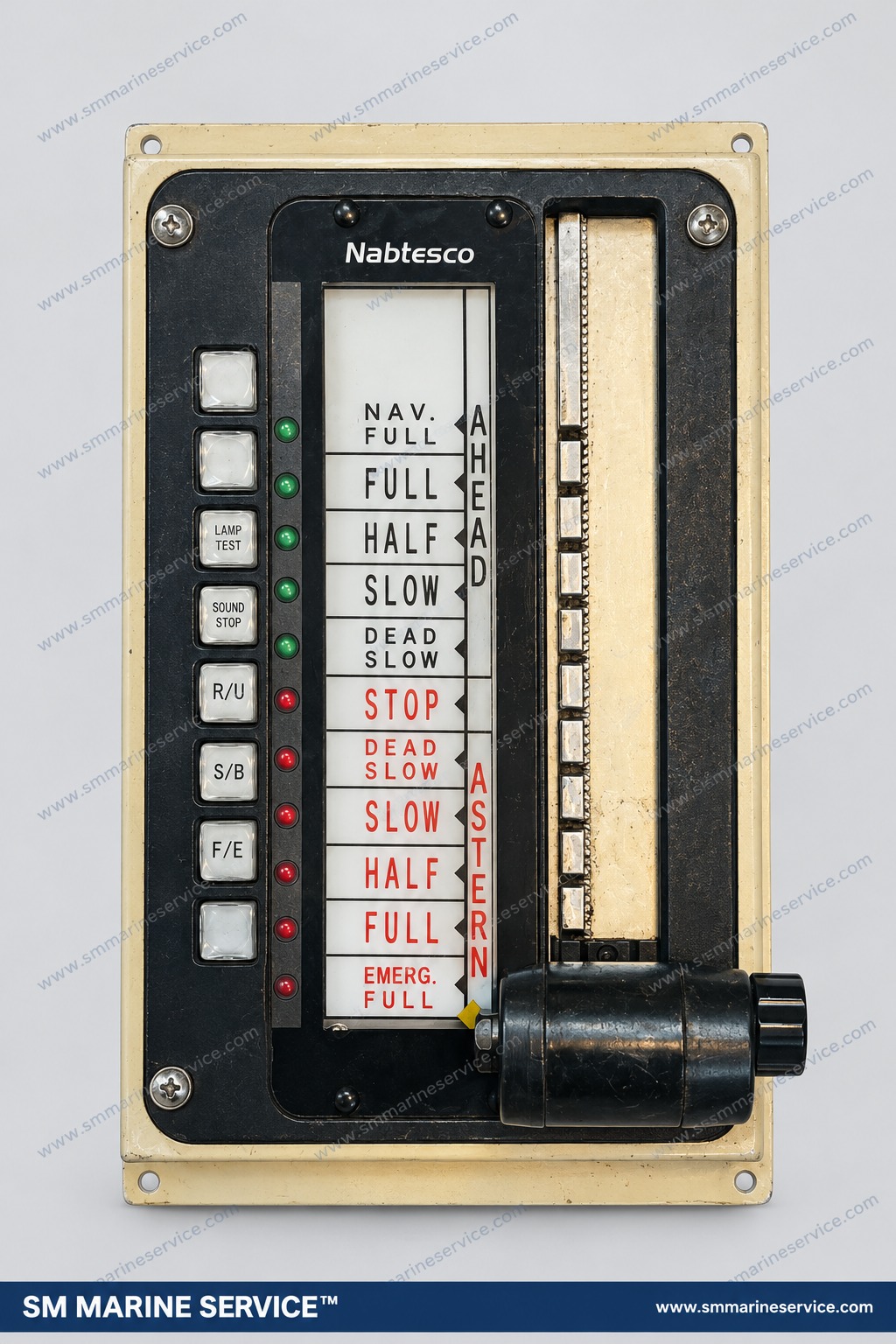

Marine Engine Order Telegraph
Nabtesco
Refurbished
The Nabtesco Engine Order Telegraph is marine equipment associated with communicating and indicating main-engine operating commands between shipboard operating stations. It is used within marine maneuvering and engine-control arrangements to help bridge personnel and engine-room teams coordinate propulsion orders during normal navigation, harbor maneuvering, arrival, departure and other vessel operations. For shipowners, marine engineers, technical superintendents and procurement departments, maintaining a reliable engine order telegraph system is an important part of preserving effective communication during vessel maneuvering.
Nabtesco is a manufacturer of marine control systems and equipment for ship propulsion applications. Its official marine product documentation describes telegraph systems with transmitter and receiver handles that operate as remote controls for main-engine speed. Depending on the system configuration, multiple handles installed at different locations can communicate and synchronize through an optional Electric Shaft System. This arrangement can support coordination between operating positions, including bridge wing handles, where fitted.
SM MARINE SERVICE™ supports marine equipment sourcing enquiries for Nabtesco Engine Order Telegraph units, related control equipment and replacement components. Whether a customer requires a complete telegraph unit, an electronic assembly, an operating handle or assistance identifying an older installation, accurate equipment identification is essential before selecting a replacement.
An Engine Order Telegraph (EOT) is a device used to communicate engine operating orders between designated stations on a vessel. Traditional marine installations commonly use a handle or selector and a scale showing engine-order positions. Depending on the system, the transmitting station sends an order, while a receiving station indicates or acknowledges the instruction.
The purpose is to provide a recognizable method of communicating requested propulsion conditions. Typical engine-order terminology includes FULL, HALF, SLOW, DEAD SLOW and STOP, together with AHEAD and ASTERN directions. The actual terminology and order sequence depend on the vessel's equipment and operating procedures.
The engine order telegraph should not automatically be confused with a complete main-engine remote control system. A telegraph may primarily provide order communication and indication, whereas an integrated bridge maneuvering system may perform additional engine-control functions. The exact capabilities of a particular Nabtesco installation must be established from its model number and technical documentation.
Nabtesco's product range includes different telegraph handle types and configurations. Its official documentation lists products such as MT-800-VII and MT-800-V, as well as pneumatic and electric handle options and twin-engine arrangements. These product families demonstrate the range of available configurations; they do not establish the exact model of every older Nabtesco telegraph found onboard a vessel.
Effective engine-order communication is particularly important when a vessel is operating in restricted waters, approaching a berth or departing from port. During these operations, the bridge team may need to communicate propulsion orders clearly and coordinate with the personnel responsible for engine operation.
A correctly configured telegraph system can support this process through recognizable order positions, suitable indication and the communication functions provided by the installed arrangement. Where multiple operating handles are connected through a compatible synchronization system, the equipment can also support coordinated operation from separate control locations.
The exact operating sequence varies between installations. Some systems use electrical signals, while other handle arrangements can employ pneumatic control outputs or different electrical interfaces. Nabtesco's published product information identifies CAN communication, potentiometer signals, limit-switch contacts and pneumatic control outputs among the options used across different product types. These specifications are model-dependent and must not be applied indiscriminately to an unidentified unit.
For this reason, shipboard maintenance teams should confirm the original equipment configuration before replacing a telegraph handle, circuit board or associated control component.
A marine engine order telegraph installation may contain several mechanical and electrical assemblies. The components fitted to an individual unit depend on its design, age and configuration.
Telegraph handle and operating mechanism: The handle provides the operator interface for selecting the required engine-order position. Mechanical wear, loose mounting, damaged stops or restricted movement should be assessed according to the manufacturer's maintenance instructions.
Order indicator and display: The indicator communicates the selected order or operating position. Depending on the model, this may use a printed scale, mechanical indicator, lamps or an electronic display.
Electrical or pneumatic interface: The system may transmit commands or indications through electrical signals, pneumatic outputs or a combination appropriate to the installation. Interface type is a critical factor when sourcing replacements.
Switches and contacts: Limit switches and other contact assemblies may provide position information or switching functions on applicable models. Their configuration and ratings must be checked against the technical documentation.
Electronic circuit boards: Certain installations may use circuit boards for communication, indication or signal processing. A replacement PCB must be matched to the original assembly and system requirements.
Cables, terminals and connectors: Connections between operating stations and associated equipment must be compatible with the installed system. Corrosion, loose terminals, damaged insulation and vibration-related faults can affect reliability.
Not every Nabtesco telegraph contains the same components. Before ordering a spare part, compare the equipment nameplate, model number, part number, connector arrangement and available drawings.
Nabtesco publishes technical details for its individual telegraph products, including output signal types and mounting dimensions. For example, its official product page describes the MT-800-VII as supporting CAN communication for remote-control commands and inter-telegraph communication, with optional potentiometer signals and limit-switch contacts. Other product families have different interfaces and dimensions.
These specifications should only be used when the installed equipment has been positively identified as the corresponding model.
For an older or unidentified unit, the following information should be collected before requesting a quotation:
Manufacturer name and complete model designation
Serial number and equipment identification plate
Part number of the complete assembly
PCB or module number, if a board replacement is required
Photographs of the front, rear, connectors and terminals
Existing system type and vessel installation details
Required quantity and equipment condition
If the model or part number is missing from the front panel, a photograph of the rear nameplate or an authorized technician's inspection may provide additional identification information. A visually similar unit is not necessarily electrically or mechanically compatible.
The following are general diagnostic possibilities for marine telegraph equipment, not confirmed model-specific fault codes for every Nabtesco product.
No indication or display: Potential causes include a supply problem, defective display components, damaged wiring or an internal electronic fault. Qualified personnel should check the approved supply, connections and relevant circuit documentation.
Incorrect or inconsistent order indication: A mechanical position issue, worn contacts, signal interruption or a fault in the connected system may be responsible. Compare the indications at the relevant operating stations and follow the vessel's approved troubleshooting procedure.
Communication failure between stations: Possible causes include cable damage, connector problems, interface faults or an issue with the associated communication system. The actual checks depend on whether the installed model uses electrical, pneumatic or network-based communication.
Intermittent operation: Vibration, loose connections, deteriorated terminals, worn switches or mechanical problems may cause intermittent performance. Inspect the equipment safely and document when the fault occurs.
Stiff or damaged handle: Do not force the mechanism. Check for physical damage, abnormal movement and mounting problems in accordance with the relevant maintenance instructions.
Electronic board fault: Before replacing a PCB, verify the board number, connector layout, supply requirements and compatibility with the installed system. A board that fits physically may still be unsuitable for the equipment.
No specific alarm codes should be assumed without the applicable manual. Any defect affecting engine-order communication or propulsion-control operation must be handled under the vessel's established safety procedures.
Routine inspection helps marine personnel identify deterioration before it becomes a serious operational problem. Maintenance should follow the manufacturer's instructions and the vessel's planned maintenance system.
Inspect the operating handle, panel mounting, indicator scale, switches and accessible electrical connections for wear or damage. Where the equipment includes indicator lamps or electronic displays, test them using the approved procedure. Check connectors and terminals for corrosion, looseness or signs of overheating, and investigate intermittent operation rather than repeatedly resetting or bypassing the affected circuit.
For installations equipped with diagnostic functions, use the relevant model documentation to understand the available monitoring information. Nabtesco's official description of the MT-800-VII notes that sensors monitor the condition of moving parts and stored data can support maintenance timing. This feature is specific to the documented product and should not be assumed to exist on older telegraph models.
Any inspection involving electrical circuits, control signals or propulsion equipment should be performed by appropriately qualified personnel. Testing must be coordinated with shipboard operations so that engine commands and safety arrangements are not inadvertently affected.
SM MARINE SERVICE™ assists customers seeking Nabtesco marine equipment, engine telegraph spare parts and replacement assemblies, subject to identification and availability.
Depending on the installed model, an enquiry may concern a complete telegraph unit, operating handle, indicator assembly, switch or contact assembly, PCB, electronic module, cable, connector or related electrical component. The availability of individual parts varies according to the product generation and whether the relevant assembly remains supported.
Customers may enquire about new, used, refurbished, reconditioned or tested working equipment, depending on available stock and sourcing options. Condition, testing status, warranty and delivery arrangements should be confirmed before purchase.
For older systems, checking replacement options is particularly important. Nabtesco's official maintenance-services documentation discusses replacement considerations for discontinued equipment, including telegraphic circuit boards for certain MT-800 and MT-800-II systems. This demonstrates why the exact model and component identification matter when maintaining older installations. It does not mean every older telegraph requires replacement or that every listed component is interchangeable.
To help identify the correct equipment, provide the model number, serial number, part number, clear product photographs and available system documentation. For PCB enquiries, include a readable photograph of the board identification markings and connector layout. These details help reduce the risk of ordering an incompatible spare.
SM MARINE SERVICE™ supports marine equipment sourcing enquiries for vessel operators, ship managers, technical superintendents, marine service engineers and spare-parts purchasing teams. Our focus is on helping customers identify the required equipment and evaluate sourcing options based on the information available.
For a Nabtesco Engine Order Telegraph enquiry, customers can submit the equipment nameplate, photographs and any available part references. This information can be used to assess the requested complete unit or component and determine what further documentation is required before a replacement is selected.
Our marine sourcing service covers enquiries for new and previously used equipment, refurbished or reconditioned units, and related spare parts, subject to availability. Worldwide shipping can be arranged where applicable, with the final offer depending on the item, destination and shipping requirements.
Technical identification remains essential. SM MARINE SERVICE™ does not recommend selecting a replacement solely on brand name or external appearance; the model, interface and installation requirements should be checked first.
What is a Nabtesco Engine Order Telegraph?
It is marine equipment used for communicating and indicating engine operating orders between designated shipboard stations, depending on the installed system.
Which Nabtesco telegraph models are available?
Nabtesco's official documentation lists several telegraph products, including MT-800-VII, MT-800-V, pneumatic and electric handle types, and twin-engine configurations. The correct model depends on the vessel's installation.
Can I purchase a Nabtesco Engine Order Telegraph replacement?
Replacement sourcing may be possible, subject to model identification and availability. Provide the equipment nameplate and relevant photographs for assessment.
Are used or refurbished Nabtesco telegraph units available?
Used, refurbished, reconditioned or tested working equipment may be sourced depending on availability. The exact condition and testing status should be confirmed for each offer.
Can a PCB from one Nabtesco telegraph be used in another model?
Not without verified compatibility. Board numbers, connectors, electrical requirements and system configuration must be checked before installation.
Can SM MARINE SERVICE™ support international enquiries?
SM MARINE SERVICE™ supports marine equipment and spare-parts sourcing enquiries for international customers, subject to item availability and shipping arrangements.
The Nabtesco Engine Order Telegraph is part of the wider range of marine telegraph and maneuvering equipment used to communicate propulsion orders onboard vessels. Correct identification, appropriate maintenance and careful replacement-part selection are essential for supporting dependable operation.
For customers searching for a Nabtesco Engine Order Telegraph, telegraph handle, indicator assembly, PCB or related marine spare part, SM MARINE SERVICE™ can assist with sourcing enquiries based on the available model and component information. Providing clear identification details helps establish the most appropriate replacement options while reducing the risk of incompatibility.
Contact SM MARINE SERVICE™ for Nabtesco Engine Order Telegraph sourcing, marine equipment replacement and spare-parts enquiries.
