Oil Mist Detector
Daihatsu Diesel Mfg. Co., Ltd.
New product
The DAIHATSU MD-SX Sensor Unit is a crankcase-mounted oil mist detection sensor developed for continuous monitoring of oil mist concentration inside marine diesel engines.
The MD-SX system uses multiple individual sensors installed directly through the engine crankcase side wall. These sensors communicate with a central controller, allowing the system to monitor each detection point continuously.
If abnormal bearing heating or another engine problem causes the crankcase oil mist concentration to increase above the configured level, the system provides an alarm for early warning of potentially serious engine damage.
The DAIHATSU MD-SX Sensor Unit is a crankcase-mounted oil mist detection sensor designed for marine diesel engine safety monitoring. The sensor continuously monitors oil mist concentration and communicates with the MD-SX controller.
The MD-SX sensor is installed directly on the engine crankcase and uses an optical detection principle to monitor abnormal oil mist conditions.
Manufacturer: DAIHATSU DIESEL MFG. CO., LTD.
Brand: DAIHATSU
Model: MD-SX
Product: Sensor Unit
Product Type: Oil Mist Detector Sensor
Origin: Japan
Condition: Brand New
Application: Marine Diesel Engine Crankcase Monitoring
Detection Method: Natural Diffusion
Detection Principle: Optical Dispersion
System: DAIHATSU MD-SX Oil Mist Detector
The MD-SX differs from conventional centralized oil mist detector designs because the sensor units are inserted directly through the crankcase side wall.
DAIHATSU states that the natural-diffusion system eliminates the need for a suction mechanism and drive-air piping for mist detection. The optical dispersion principle also enables the sensing system to remain relatively compact.
This provides a simple monitoring chain:
Engine Crankcase → MD-SX Sensor → Oil Mist Measurement → MD-SX Controller → Alarm / Engine Safety Monitoring
The DAIHATSU MD-SX provides:
DAIHATSU states that up to 16 sensor units per engine, or eight units on each of two engines in a twin-engine configuration, can be supported.
The following photograph shows multiple boxed DAIHATSU MD-SX SENSOR – OIL MIST DETECTOR units.
Product: Sensor Unit MD-SX
Maker: DAIHATSU
Origin: Japan
Condition: Brand New
For shipowners, technical managers and marine spare-parts buyers requiring an MD-SX replacement sensor, SM MARINE SERVICE™ can support international supply subject to stock availability.
According to DAIHATSU's published MD-SX specifications:
Detection Point: 1 point per sensor
Maximum Sensors: 16 units / engine
Detection Method: Natural diffusion
Detection: Continuous
Response Time: ≤1 second
Detection System: Optical dispersion
Concentration Range: 0–2.0 mg/L
Sensor Indication: 3-color LED – Power, Alarm, Failure
Communication: Sensor/controller integrated system
Power Supply: 24 VDC supplied from controller
Power Consumption: Maximum 60 mA per sensor
Protection Class: IP55
Sensor Weight: Approximately 350 g
The controller provides mist-level indication, alarm monitoring and self-diagnostic functions.
Oil mist inside a diesel-engine crankcase can increase when abnormal heating occurs around bearings or other moving components.
The MD-SX continuously monitors crankcase oil mist concentration. DAIHATSU states that when concentration rises above a set point due to overheating of bearings or another cause, the system issues an alarm, helping identify conditions that could otherwise develop into serious engine trouble.
The system is applicable to low-, medium- and high-speed diesel engines.
The DAIHATSU MD-SX Sensor Unit is suitable for oil mist monitoring applications on marine diesel engines aboard:
Bulk Carriers • Container Ships • Oil Tankers • Chemical Tankers • LNG/LPG Carriers • General Cargo Ships • Offshore Vessels • Passenger Ships • Merchant Vessels
It is particularly important for engine-room safety and crankcase condition monitoring.
If the MD-SX reports a sensor failure, inspect the sensor, communication wiring, connectors and controller indication before replacing the unit.
Check the 24 VDC supply from the controller, sensor cable, connector and wiring.
Inspect the communication cable, connections, terminals and sensor/controller communication arrangement.
Sensor contamination, incorrect installation or a damaged sensor can affect measurement. The sensor should be inspected and cleaned according to the manufacturer's procedure.
A repeated alarm should not automatically be assumed to be a faulty sensor. Actual engine crankcase conditions, bearings and other potential sources of abnormal heating should be investigated.
Regularly inspect the MD-SX sensor and its wiring. Keep the optical sensing area clean according to the manufacturer's maintenance procedure, inspect connectors for oil or corrosion, verify sensor status indications and test the complete OMD system according to vessel maintenance requirements.
Because the sensor is part of an important engine-safety system, replacement and testing should be performed by suitably qualified marine personnel.
SM MARINE SERVICE™ can support sourcing of DAIHATSU MD-SX equipment including:
MD-SX Sensor Unit • Complete MD-SX Oil Mist Detector • Controller Unit • Sensor Cable • Communication Cable • Connectors • Sensor Installation Components • Sealing Components • Replacement Sensors • Related DAIHATSU Genuine Parts
Supply may be available in:
New • Used • Tested Working • Refurbished • Reconditioned

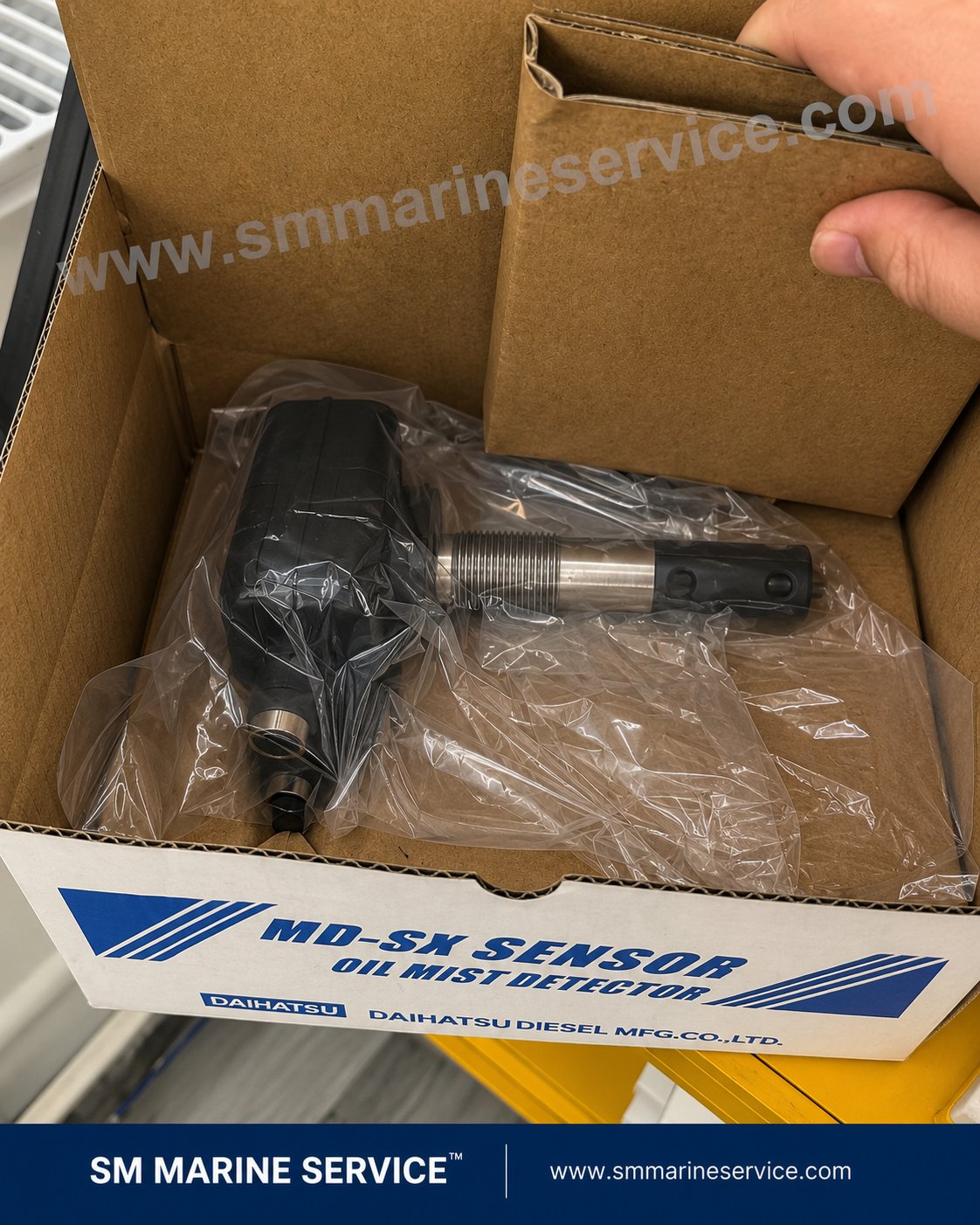

The sensors shown in the photographs on this page are:
DAIHATSU MD-SX Sensor Unit – Brand New – Japan
SM MARINE SERVICE™ can also support sourcing of marine Oil Mist Detector systems, sensors, detector heads, monitoring units and associated spare parts for various shipboard diesel-engine applications.
If you cannot find your exact OMD sensor, send:
Maker + Model + Part Number + Nameplate Photo + Required Quantity
This allows the correct replacement to be identified more accurately.
It is a crankcase-mounted sensor used by the DAIHATSU MD-SX Oil Mist Detector system to continuously monitor oil mist concentration in diesel engines.
DAIHATSU uses a natural diffusion system combined with optical dispersion detection.
DAIHATSU specifies a maximum of 16 sensor units per engine in the documented configuration.
Yes. The product shown here is a brand-new DAIHATSU MD-SX Sensor Unit from Japan, subject to current stock availability.
SM MARINE SERVICE™ can supply DAIHATSU MD-SX sensors to international marine customers, subject to availability.
Depending on availability, replacement sensors, controller components, cables, connectors, sealing parts and associated OMD components can be sourced.
Yes. Customers can submit the OMD maker, model and part number for sourcing of compatible marine oil mist detector sensors and spare parts.
DAIHATSU MD-SX Sensor Unit is a marine diesel-engine crankcase oil mist detector sensor using natural diffusion and optical dispersion technology for continuous oil mist monitoring. The sensor communicates with the MD-SX controller to provide early warning of abnormal crankcase conditions. Brand-new DAIHATSU MD-SX Sensor Units from Japan are available from SM MARINE SERVICE™, subject to stock, with worldwide shipping and technical sourcing support.
DAIHATSU MD-SX Oil Mist Detector – Specifications & Technical Information
The official technical page provides MD-SX system features, operating principle, sensor/controller specifications, dimensions and manufacturer downloads.
